| 加工定制：否 |
Model Number：ITC-100
Tally 接口：2 x 15 Pin DSub Sockets for Tally A and B
耳机麦克风接口：3.5 mm Stereo Jack Socket for Headphone / Microphone combination Headset Impedance 8-600 Ohms 100 mW (min)
耳机接口
?” (6.3mm) Stereo Headphone Socket
Headset Impedance 8-600 Ohms 100 mW (min)
灯光接口(DC 12V)
3 PIN XLR Connector
PIN 2: 12V
PIN 3: GND
Light Power Consumption: 12 V / 100 mA (MAX.)
麦克风接口
3 PIN XLR / ?” (6.3mm) Jack Microphone Socket
Switchable Condenser / Dynamic Input
Microphone Level -67 dB
频率响应
550-3.6 kHz, <+/- 3dB
总谐波失真(THD)
<3%
信号杂讯比(S/N)
> 50dB
内建麦克风
70mm x 30mm 32 Ohm 3 Watts
操作范围
Up to 200 meters between base station and slave
操作温度
0~40 °C
尺寸
482 x 127 x 46 mm
重量
1.9 kg
电源
DC 12V, 8W

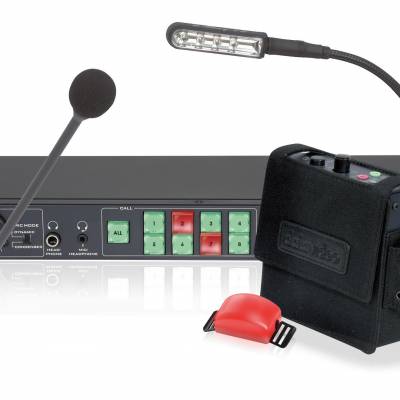

包装明细
1 x ITC-100 Base Unit
4 x ITC-100SL Belt Pack
4 x ITC-100SL Carry Case
4 x Cable 5piin XLR to XLR
4 x 3.5mm Jack to 3.5mm Jack Cable
4 x Headset with microphone
4 x Tally LED Indicator
1 x XLR Gooseneck Microphone
1 x XLR Gooseneck Light
1 x 12V 1A Power Supply Unit
